Display: 7-inch color capacitive touchscreen

Interfaces: R232 interface, USB interface, wired network interface, power interface

Instrument operating voltage: 12V, operating current: ≤800mA

Overall weight: ≤3Kg

Environmental adaptability: Built-in battery, capable of off-grid operation for over 4 hours; suitable for on-site environments such as grain procurement, ensuring accurate and stable test results

Operation mode: Full touchscreen operation, simple software interface, easy to use

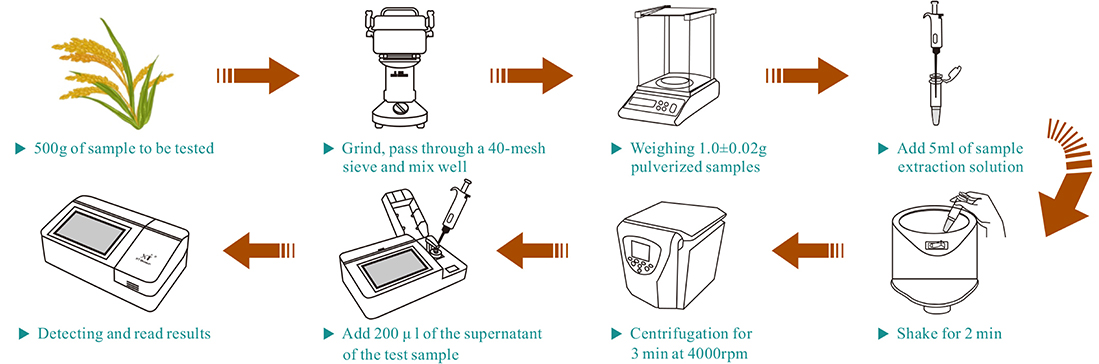

Sample pretreatment: Pretreatment time for small batches of samples ≤20 minutes; no dangerous or complex operations such as strong acid use or heating digestion required during pretreatment

Test time: Screening – ≤3 minutes per element; accurate quantification – ≤6 minutes per element. Lead and cadmium can be detected simultaneously.

Electrodes: The instrument uses screen-printed electrodes, requiring no complex pretreatment processes such as polishing.

The instrument can detect the content of heavy metal elements such as lead (Pb), cadmium (Cd), arsenic (As), and copper (Cu) in grain crops including paddy rice, brown rice, milled rice, wheat, corn, etc., edible oils such as corn oil and peanut oil, and water.

★ Grain quality inspection             ★ Aquatic products market

★ Feed quality inspection              ★ Water quality detection

★ Soil testing                                 ★ Higher education institutions
